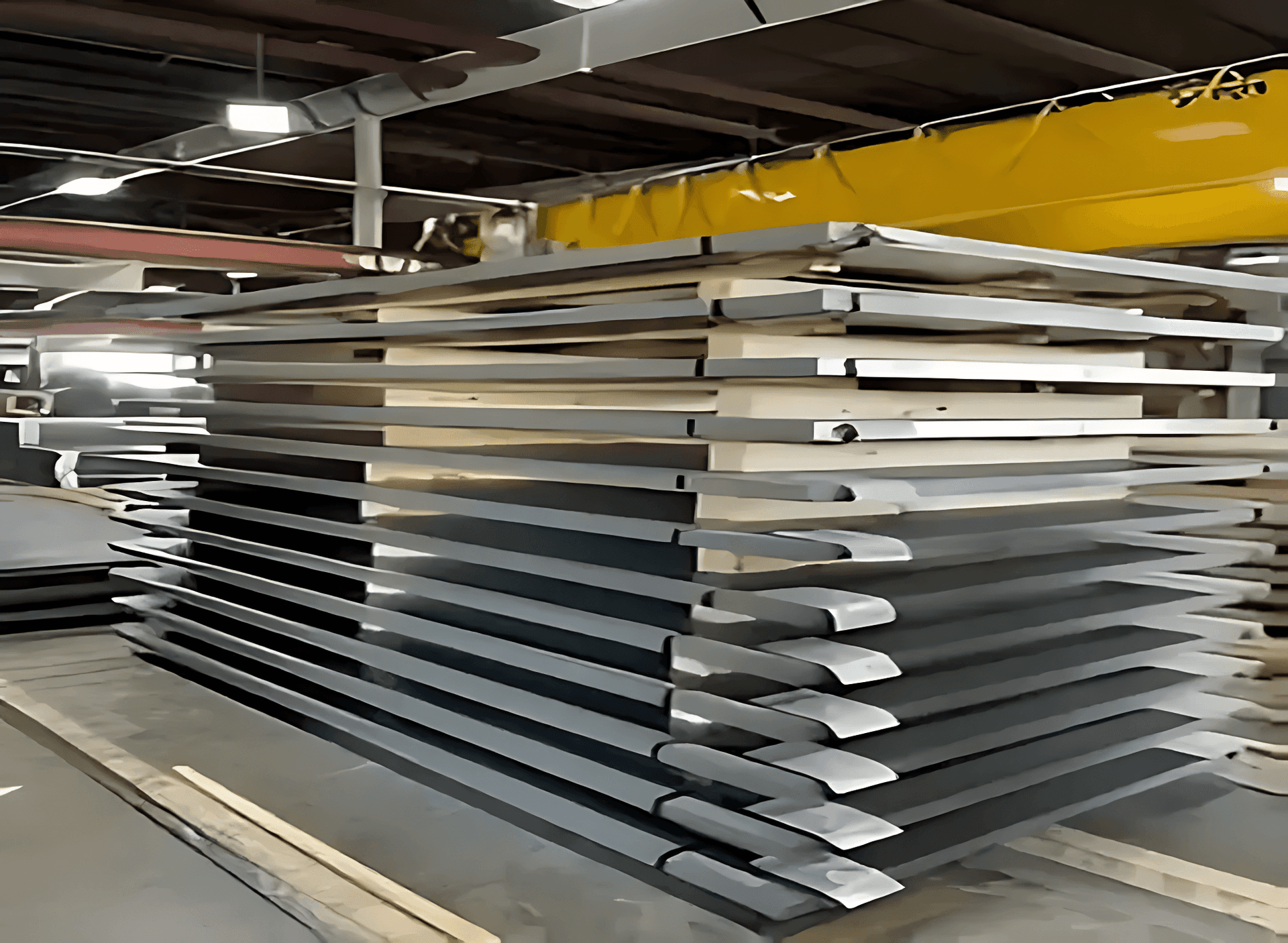

Bulldog Rack's Secure Pin Cantilever: Infrastructure for Industrial Agility

In industries that handle long, heavy, and irregular materials—steel, lumber, pipe, bar stock, furniture, building materials—storage is not just about capacity. It is about agility. Product mixes change. Customer orders vary in size and dimension. New materials get added while old ones phase out. The storage system needs to keep up without becoming a bottleneck.

Bulldog Rack's Secure Pin Cantilever system was engineered from the ground up to solve this problem: heavy-duty strength with tool-free reconfigurability.

What Makes Secure Pin Different

Traditional cantilever racking uses bolted arm connections. Changing arm heights or configurations requires a wrench, a maintenance crew, and downtime. In a busy distribution center or manufacturing facility, that means arms rarely get adjusted even when the product mix changes—leading to wasted space, poor accessibility, and awkward load placement.

The Secure Pin system replaces bolted connections with a positive-locking pin mechanism that allows arms to be repositioned, added, or removed without tools. The process takes minutes, not hours, and can be done by a single person.

How It Works

• Precision-punched columns—Vertical columns feature a series of machined holes on a consistent pitch (typically 3-inch or 4-inch centers), allowing arms to be placed at any height along the column.
• Secure pin connection—Each arm slides into the column and is locked in place with a spring-loaded or gravity-actuated pin that drops into a machined slot. The pin provides a positive lock that prevents accidental disengagement under load.
• Tool-free adjustment—To move an arm, simply lift the pin, slide the arm out, reposition it at the new height, and re-engage the pin. No wrenches, no bolts, no safety concerns about partially secured connections.
• Same load capacity—The secure pin connection is engineered to deliver the same load rating as a bolted connection. You are not trading strength for flexibility.

Structural Specifications

The Secure Pin Cantilever is built from structural steel—not roll-formed light gauge. Every component is designed for the punishing loads that industrial storage demands:

• Column capacity: Up to 36,000 lbs per column, depending on configuration and arm loading.
• Arm capacity: Standard arms rated from 2,000 to 12,000 lbs per arm. Custom heavy-duty arms available for special applications.
• Arm lengths: Available from 24 inches to 72 inches, with custom lengths for oversized materials.
• Column heights: Standard heights from 8 feet to 24 feet. Custom heights for high-bay applications.
• Base types: Standard base, heavy-duty base, and seismic base options. All bases are engineered for specific floor slab conditions and load requirements.
• Finish: Standard powder coat in Bulldog Rack colors, with custom colors and hot-dip galvanizing available for outdoor and corrosive environments.

Configurations

The system is available in several configurations to match your facility and product requirements:

Single-Sided

Arms extend from one side of the column only. Ideal for wall-mounted installations or end-of-row positions. Provides full accessibility from one side.

Double-Sided

Arms extend from both sides of the column, creating a freestanding storage island. Maximizes storage density by serving two aisles from a single row of columns.

VNA (Very Narrow Aisle) Cantilever

Combined with guided vehicle systems or specialized reach equipment, Bulldog Rack's cantilever can be configured for very narrow aisle operation—reducing aisle width from 12-14 feet to as little as 6 feet. This is particularly valuable in steel service centers where maximizing storage per square foot is critical.

Industries and Applications

Steel Service Centers

The original use case. Steel service centers handle bar stock, structural shapes, plate, pipe, and tube in constantly varying lengths and quantities. The Secure Pin system lets operators adjust arm heights and spacing to match incoming inventory without calling maintenance.

Lumber and Building Materials

Lumber dimensions change with product mix—dimensional lumber, engineered wood, sheet goods, trim, and specialty products all have different storage requirements. The ability to reconfigure arm heights between deliveries keeps the yard organized and accessible.

Pipe, Tube, and Bar Stock

Round, square, and rectangular tube in various diameters and wall thicknesses require adjustable arm spacing to prevent rolling, nesting, and damage. The Secure Pin system accommodates diameter changes without re-engineering the rack.

Manufacturing WIP Storage

Fabrication shops and manufacturing facilities use cantilever for raw material staging, work-in-process storage, and finished goods. As production runs change, the racking needs to change with them.

Furniture and Appliance Distribution

Bulky, irregularly shaped items that do not fit on standard pallets are natural cantilever loads. The open face design allows forklift or clamp truck access without obstruction from front uprights.

Outdoor Storage

With hot-dip galvanized finish options, the Secure Pin Cantilever is designed for exposed outdoor installations where UV, rain, snow, and temperature cycling would degrade standard finishes.

Why It Matters

In an era where product mixes are changing faster than ever, storage systems that cannot adapt become liabilities. Every hour of downtime to reconfigure traditional bolted cantilever is lost productivity. Every arm that stays at the wrong height because it is too much trouble to adjust is wasted space.

The Secure Pin Cantilever turns storage into a dynamic asset that moves at the speed of your business. It is built tough enough for the heaviest industrial loads and flexible enough to reconfigure on the fly.

Contact Bulldog Rack for specifications, load tables, and a custom layout for your facility.
